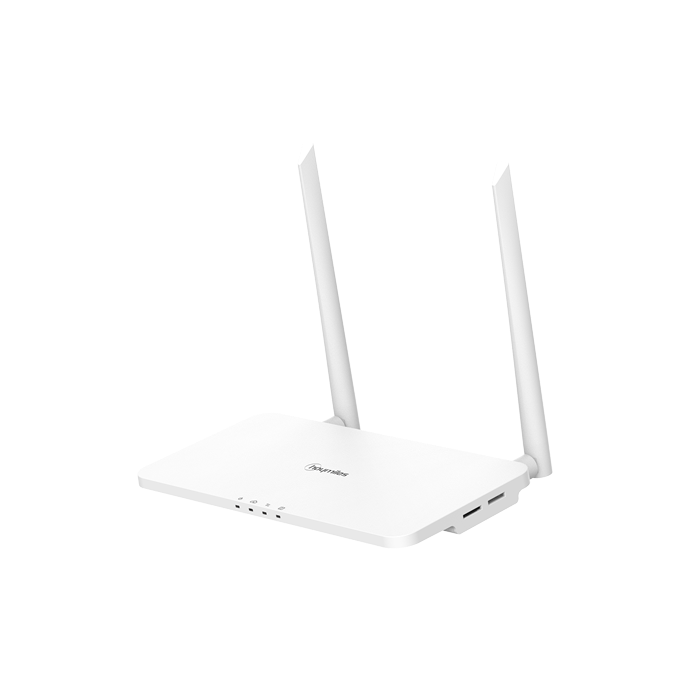

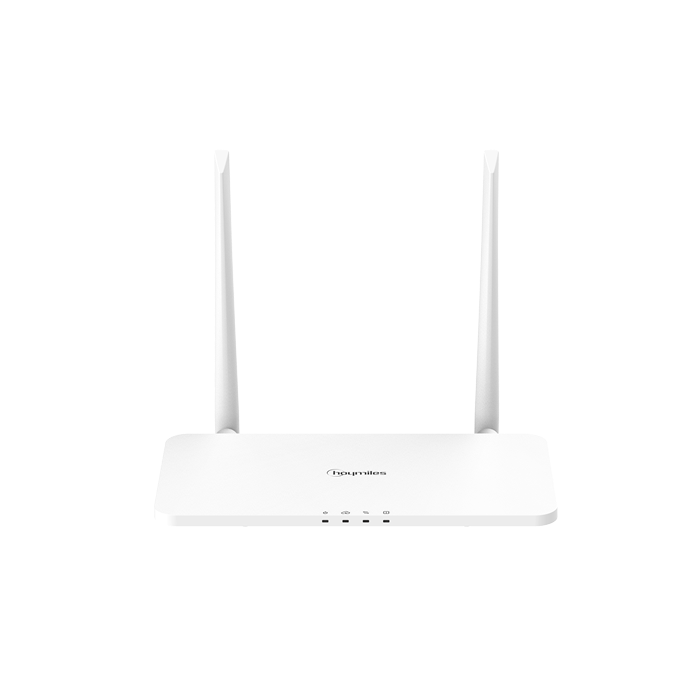

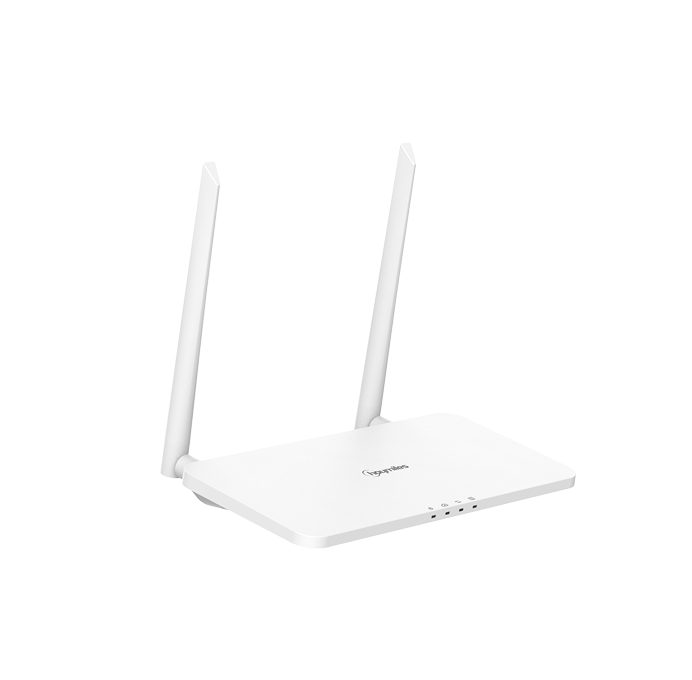

Hoymiles DTU-Pro
The Hoymiles Gateway DTU-Pro is a data transfer unit that efficiently collects information and data from PV microinverters using a 2.4G wireless solution. It then transmits this data to the S-Miles Cloud, Hoymiles’ monitoring system, using different communication options such as Ethernet, Wi-Fi, GPRS, or 4G.
With Hoymiles DTU-Pro, users can easily read module-level data and alarms and realize remote operation and maintenance of the PV system at any time from anywhere on S-Miles Cloud. Hoymiles DTU-Pro is a powerful tool to monitor and manage your solar energy system with convenience and flexibility.
-
Features
-
Tech Specs
Features
-
-
Stable communication with HM, MI series of microinverter.
-
More communication options with S-Miles Cloud, using Ethernet, Wi-Fi, GPRS or 4G.
-

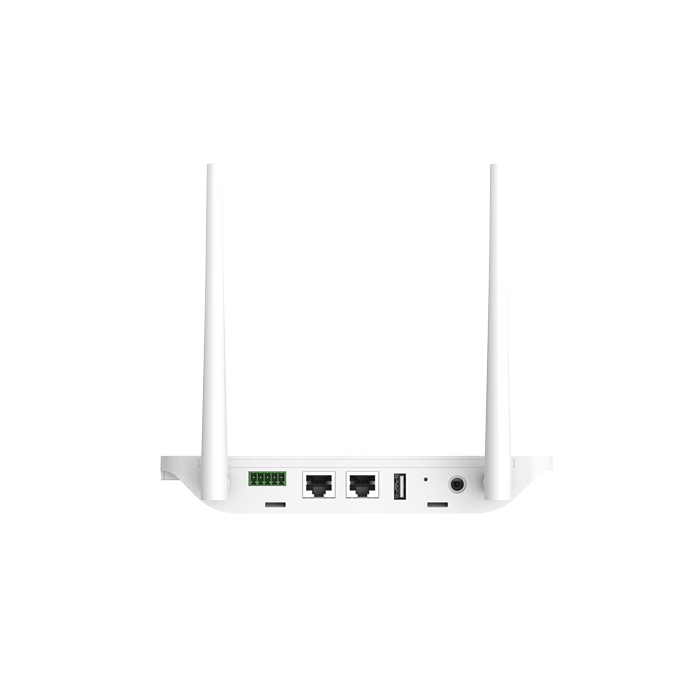

Support of RS485, Ethernet to communicate with peripherals.
-
Module-level monitoring and data storage.
-
Local configuration with S-Miles Toolkit.
-
Support remote O&M including remote upgrading, parameter setting.
-
-
-
Smart zero export control and power export limiting.
-
PV generation and load consumption monitoring.
-
Tech Specs
-
GPRS
-
WIFI
-
4G
-
-
Signal:2.4GHz Proprietary RF (Nordic)
-
Maximum distance (open space):200 m
-
Monitoring data limit from solar panels:99
-
Ethernet (Communication to S-Miles Cloud):RJ45 × 1, 100Mbps
-
Wireless (Communication to S-Miles Cloud):2G:GSM/GPRS
-
Installation method:Desktop mounting
-
Microinverter mode:HM series, MI series
-
-
-
Signal:2.4GHz Proprietary RF (Nordic)
-
Maximum distance (open space):200 m
-
Monitoring data limit from solar panels:99
-
Ethernet (Communication to S-Miles Cloud):RJ45 × 1, 100Mbps
-
Wireless (Communication to S-Miles Cloud):Wi-Fi:802.11b/g/n
-
Installation method:Wall mounting
-
Microinverter mode:HM series, MI series
-
-
-
Signal:2.4GHz Proprietary RF (Nordic)
-
Maximum distance (open space):200 m
-
Monitoring data limit from solar panels:99
-
Ethernet (Communication to S-Miles Cloud):RJ45 × 1, 100Mbps
-
Wireless (Communication to S-Miles Cloud):4G:TDD-LTE, FDD-LTE 3G:SCDMA 2G:GSM/GPRS
-
Installation method:Desktop mounting
-
Microinverter mode:HM series, MI series
-
