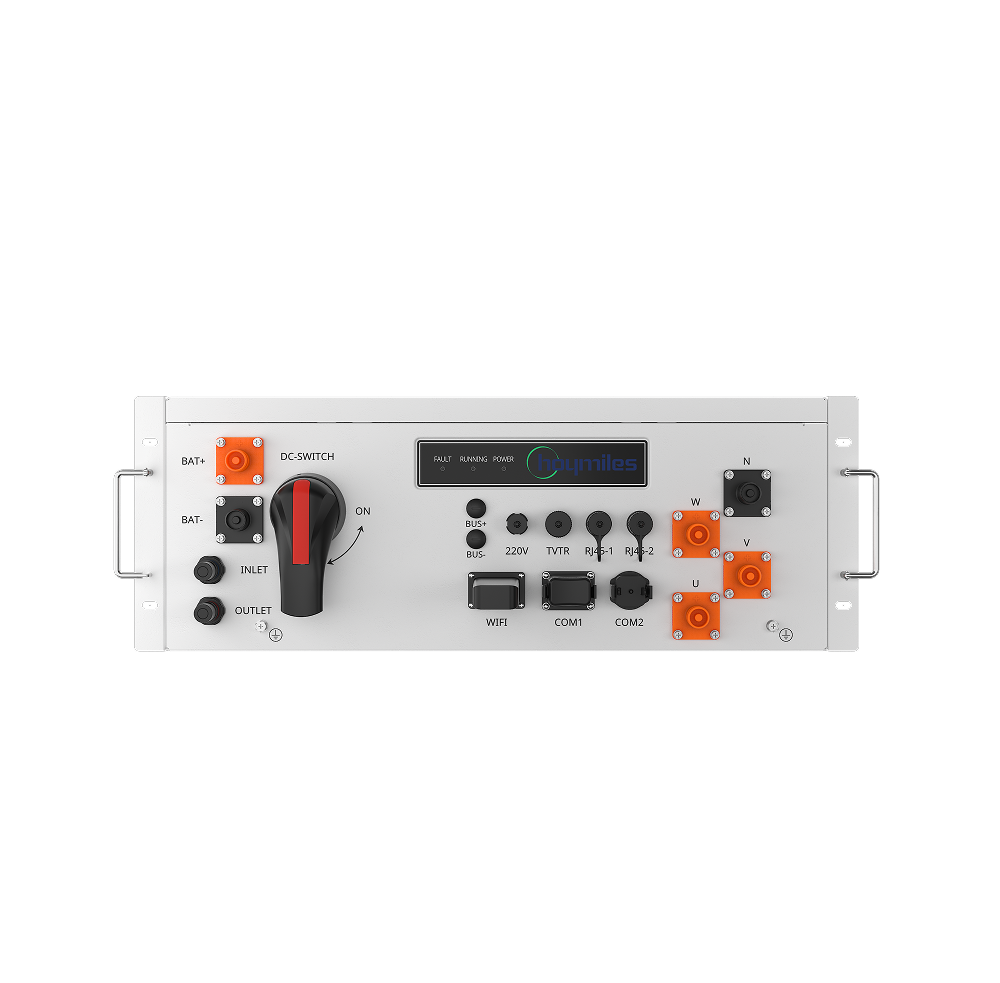

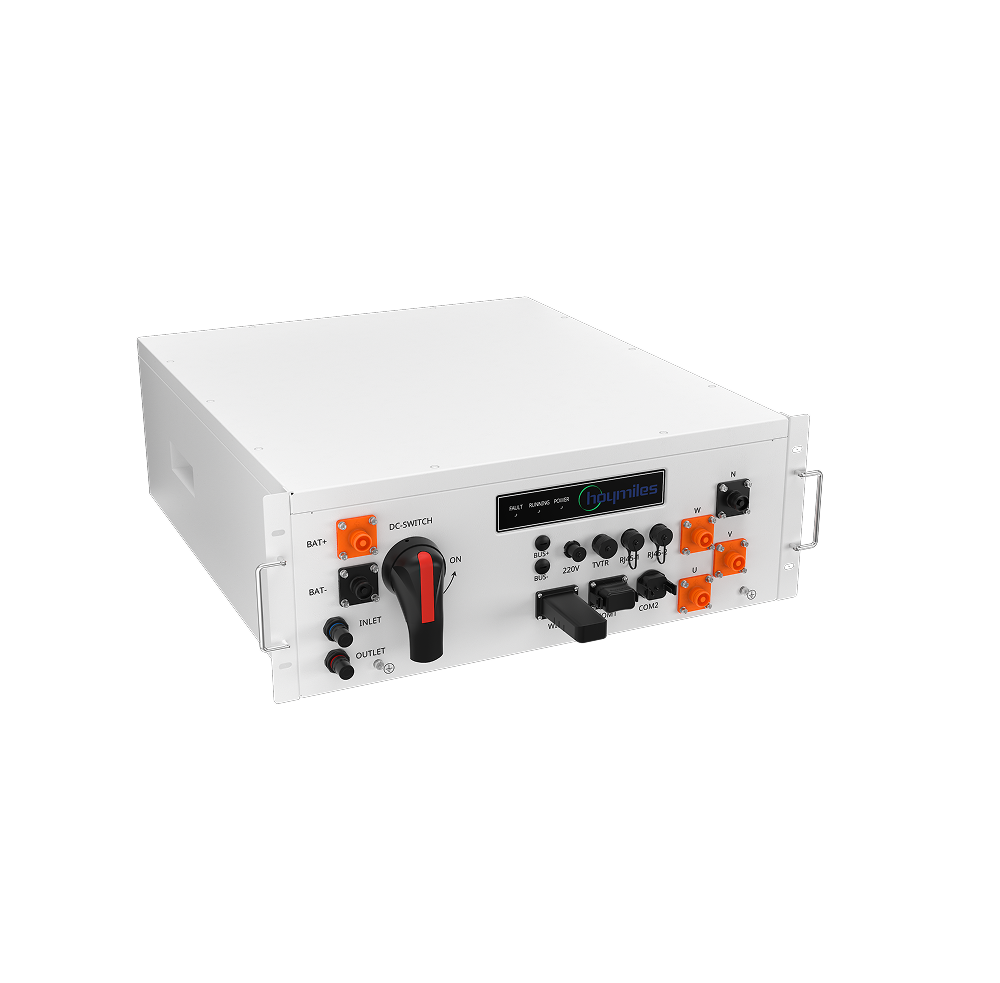

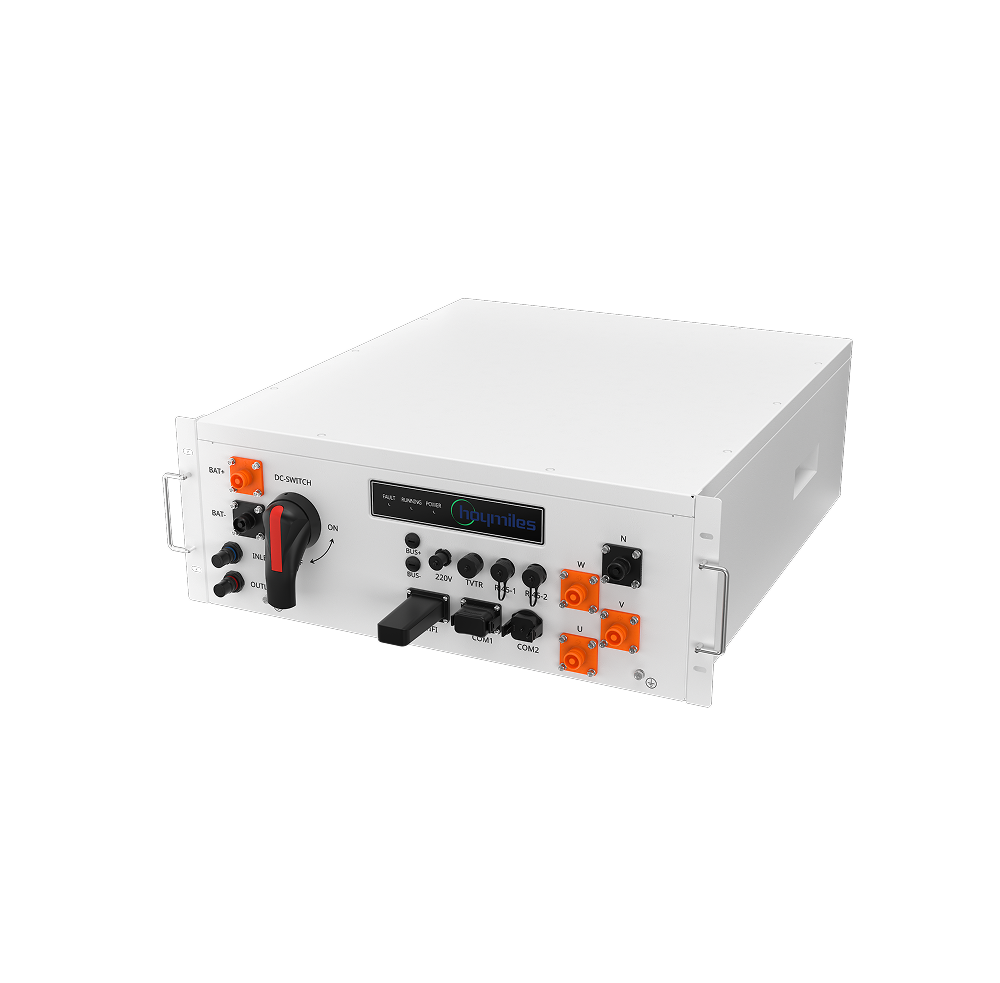

HPCS125

HPCS125 is based on ANPC, Peak efficiency >99%; Intelligent liquid cooling; Higher power density and smaller size; no derating up to 45 °C; IP65, adapting to high salt, high humidity, high temperature, high evaporation and other complex and harsh operating environments.

Neem Contact met Ons op

Downloads

1/4

Features
Tech Specs

Features

- Handle complex conditions with ease
  Supports 100% off-grid operation and single-phase unbalanced loads. Adaptable to wide voltage range (580–1000V) and battery specifications (280–320Ah).
- Innovative architecture, stable performance
  IP65 protection for safety and reliability. Operates at up to 45°C without derating.
- The ultimate design for safety & reliability
  Features a triple protection system with directional explosion venting to reduce secondary risks. Includes real-time safety monitoring with BMS and PCS, with a rapid refresh rate.
- Quick and easy maintenance
  Self-sealing technology allows for easy plug-and-play installation. Fault replacement takes only 15 minutes.

Tech Specs

HPCS125

- :

  580 to 1000 V
- :

  400 V
- :

  214.8A (@45℃)
- :

  IP65
- :

  Intelligent liquid cooling
- :

  >98.7%
- :

  650×250×750mm
- :

  75 kg
