MIT-4000&4500&5000-8T

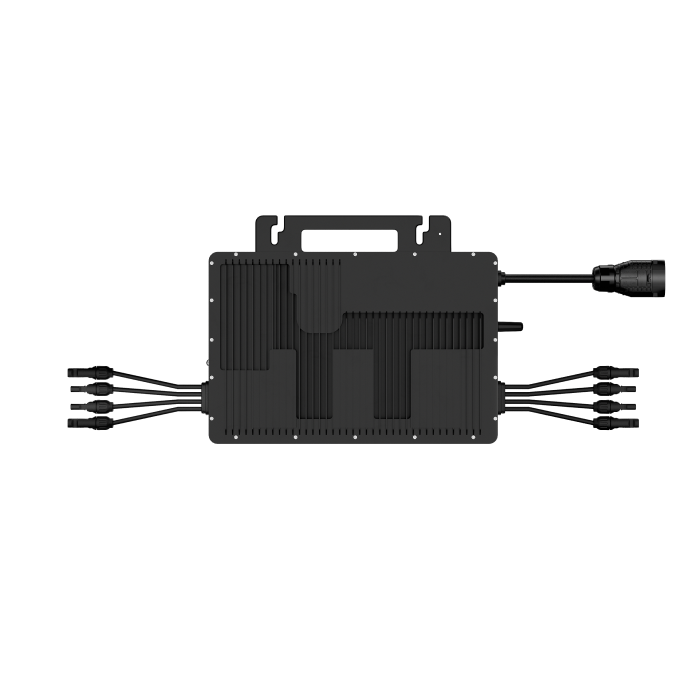

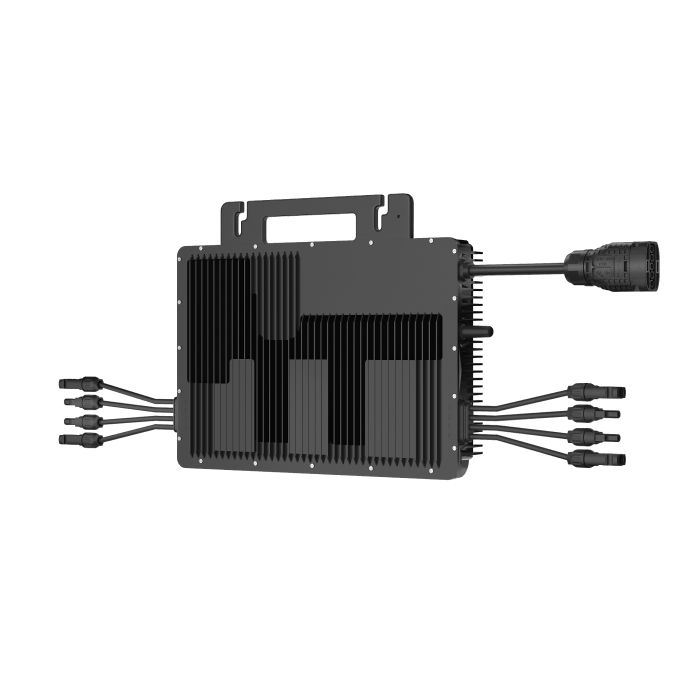

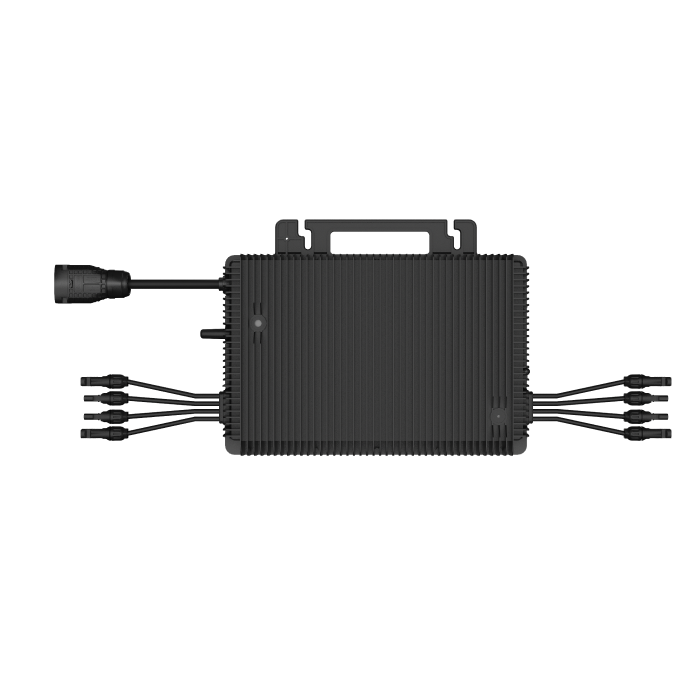

Hoymiles new generation microinverter MIT-5000-8T series is designed to accommodate eight high-powered PV modules, with output power up to 5000 VA and input current up to 20 A. Its four MPPTs maximize energy harvest, ensuring optimal performance.
The innovative 8-in-1 design significantly reduces system costs, making the MIT-5000-8T series a cost-effective choice.
The Sub-1G wireless solution ensures stable communication with Hoymiles gateway DTU, and enables module-level monitoring and remote O&M on Hoymiles Monitoring Platform S-Miles Cloud.
-
Features
-
Tech Specs
Features
-
-
Three-phase output, ideal for commercial and industrial applications
-
Output power up to 5000 W and input current up to 20 A, compatible with 182 mm/210 mm PV modules
-
Four MPPTs, optimizing power generation
-
Low input voltage for safer rooftop installations, minimizing arc faults and electric shocks
-
8-in-1 design for quick installation with Flex-T5 Cable System, reducing costs
-
Sub-1G wireless solution for stable communication and convenient O&M
-
Tech Specs
-
4000W
-
4500W
-
5000W
-
-
Commonly used module power (W):400 to 650+
-
Maximum input voltage (V):140
-
Maximum input current (A):4 × 20
-
Number of MPPTs:4
-
Rated output power (VA):4000
-
Nominal output voltage/range (V)* :220/380, 3L+N+PE; 230/400, 3L+N+PE
-
CEC peak efficiency:97.4%
-
-
-
Commonly used module power (W):560 to 700+
-
Maximum input voltage (V):140
-
Maximum input current (A):4 × 20
-
Number of MPPTs:4
-
Rated output power (VA):4500
-
Nominal output voltage/range (V)* :220/380, 3L+N+PE; 230/400, 3L+N+PE
-
CEC peak efficiency:97.4%
-
-
-
Commonly used module power (W):600 to 750+
-
Maximum input voltage (V):140
-
Maximum input current (A):4 × 20
-
Number of MPPTs:4
-
Rated output power (VA):5000
-
Nominal output voltage/range (V)* :220/380, 3L+N+PE; 230/400, 3L+N+PE
-
CEC peak efficiency:97.4%
-
