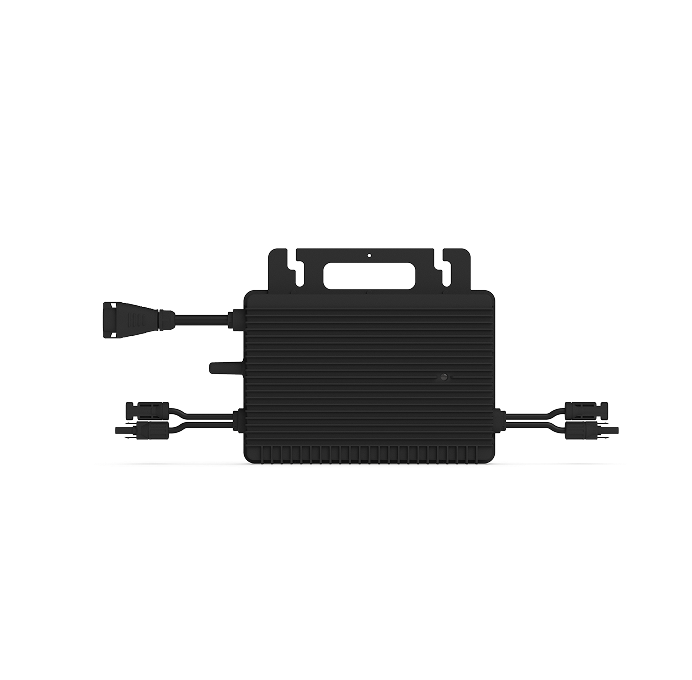

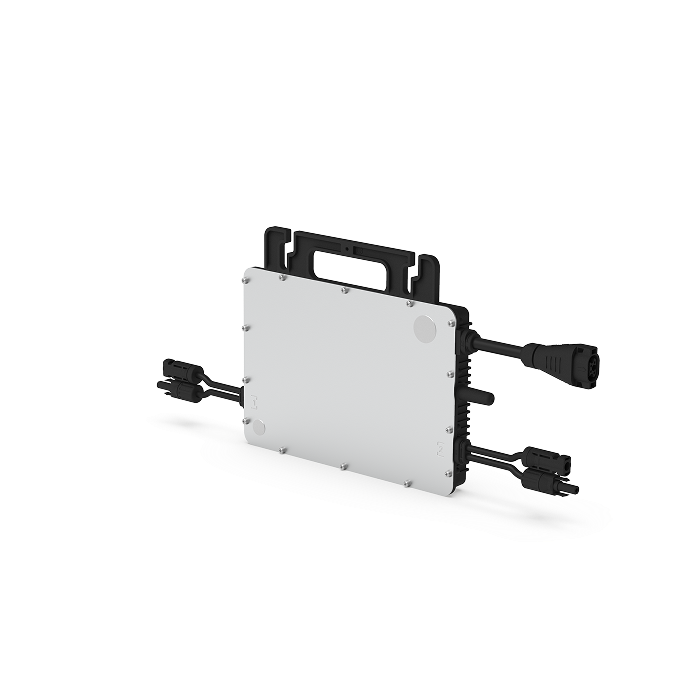

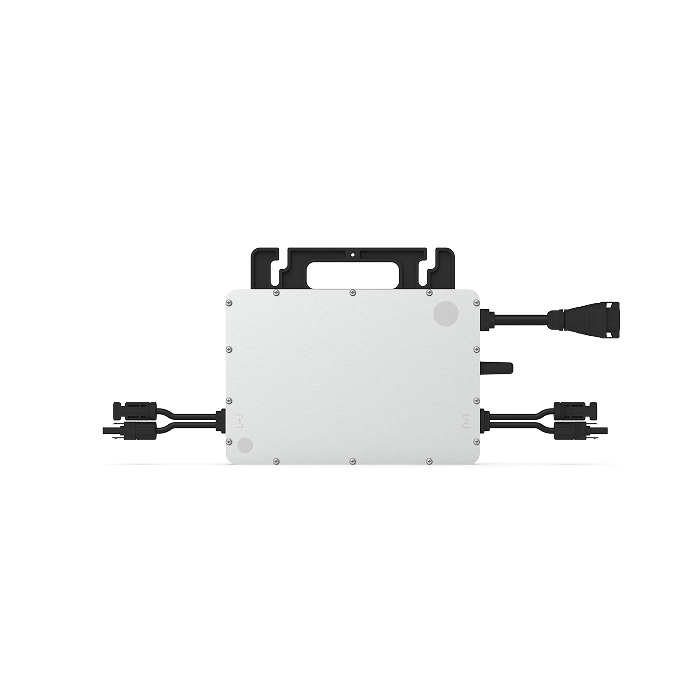

HMS-600&700&800&900&1000W-2T

Hoymiles HMS-1000W-2T series microinverters are specifically designed for mini PV systems, such as balcony systems, and feature an integrated industrial+ grade Wi-Fi module.

With the user-friendly Flex-S3 Plug and Play Cable-CEE7/7, installation is simple—just connect the microinverter directly to a socket with no need for complicated wiring.

Monitoring the system is easy with the HMS-1000W-2T series. You can access real-time production data directly on your smartphone, or set up remote monitoring through the S-Miles Cloud by creating PV plants.

Download Spec Sheet

1/4

Learn More

Features
Tech Specs

Features

- Plug-and-play design for balcony solar systems.
- Built-in industrial+ grade Wi-Fi module for high reliability.
- Compatible with Micro Toolkit or S-Miles Cloud for monitoring and management.
- Output power setting function to customize performance.
- Enhanced safety with rapid shutdown compliance and isolated transformer.
- High-powered microinverter with up to 1000 VA output.

Tech Specs

600W
700W
800W
900W
1000W

- Commonly used module power (W):

  240 to 405+
- Maximum input voltage (V):

  60
- Maximum input current (A):

  2 × 12
- Number of MPPTs:

  2
- Rated output power (VA):

  600
- Nominal output voltage/range (V)* :

  220/180-275; 230/180-275; 240/180-275
- CEC peak efficiency:

  96.70%
- Commonly used module power (W):

  280 to 470+
- Maximum input voltage (V):

  60
- Maximum input current (A):

  2 × 13
- Number of MPPTs:

  2
- Rated output power (VA):

  700
- Nominal output voltage/range (V)* :

  220/180-275; 230/180-275; 240/180-275
- CEC peak efficiency:

  96.70%
- Commonly used module power (W):

  320 to 540+
- Maximum input voltage (V):

  65
- Maximum input current (A):

  2 × 14
- Number of MPPTs:

  2
- Rated output power (VA):

  800
- Nominal output voltage/range (V)* :

  220/180-275; 230/180-275; 240/180-275
- CEC peak efficiency:

  96.70%
- Commonly used module power (W):

  360 to 600+
- Maximum input voltage (V):

  65
- Maximum input current (A):

  2 × 15
- Number of MPPTs:

  2
- Rated output power (VA):

  900
- Nominal output voltage/range (V)* :

  220/180-275; 230/180-275; 240/180-275
- CEC peak efficiency:

  96.50%
- Commonly used module power (W):

  400 to 670+
- Maximum input voltage (V):

  65
- Maximum input current (A):

  2 × 16
- Number of MPPTs:

  2
- Rated output power (VA):

  1000
- Nominal output voltage/range (V)* :

  220/180-275; 230/180-275; 240/180-275
- CEC peak efficiency:

  96.50%

HMS-600&700&800&900&1000W-2T
