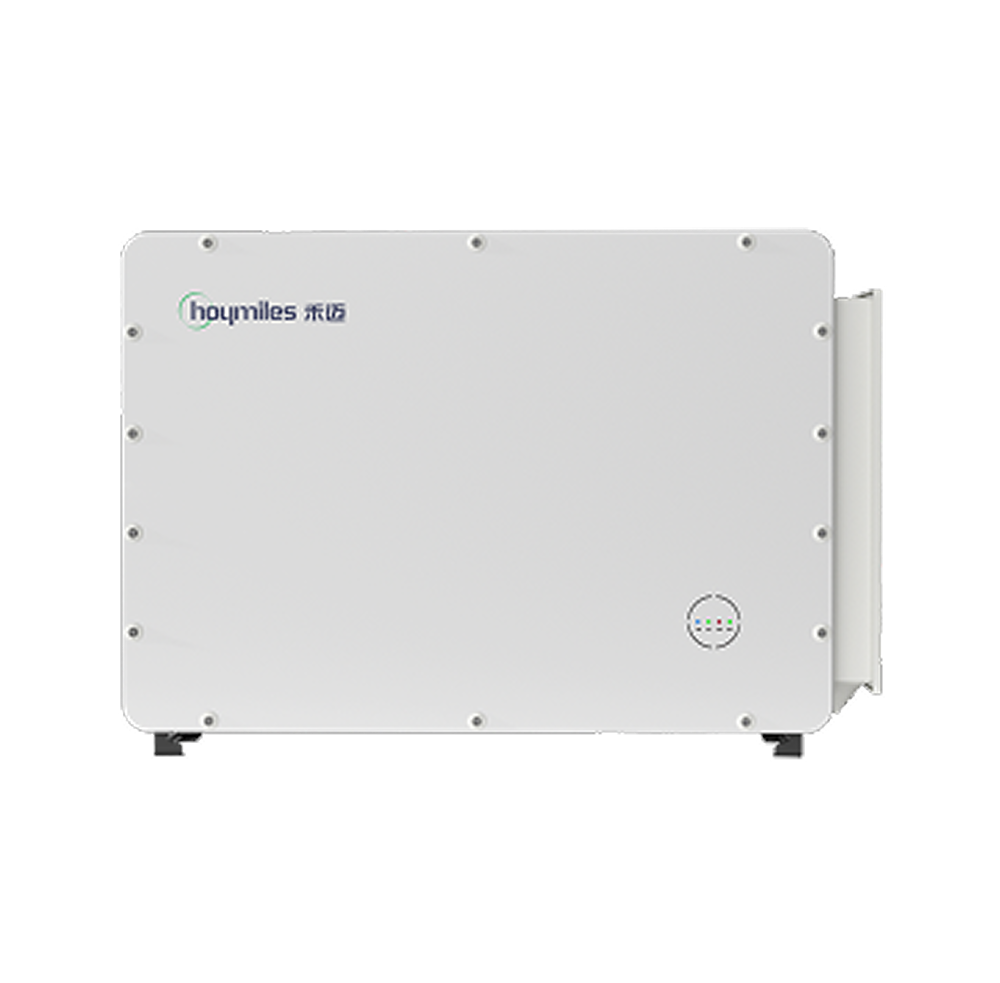

HINV350HX-G2

1500V high power density PV inverter is suitable for many complex and harsh scenarios.

Advanced topology and software control ensure the high efficiency, reliability, and stability of product operation.

Innovative grid-connected algorithms and broadband PLC technology enable fast response to grid dispatching and effectively support the grid.

Contact Us
Download Spec Sheet
1/4
  • Features
  • Tech Specs

Features

    • 6*75A MPPT, compatible with 182&210mm module.

    • Power line communication (PLC).

    • Max. Efficiency 99.05%, EU Efficiency 98.8%.

    • SCR ≥ 0.99 stable operation in extremely weak grid.

    • IP66 and C5 anti-corrosion.

    • PV string monitoring and intelligent breaking technology.

Tech Specs

  • HINV300HX-G2
  • HINV320HX-G2
  • HINV330HX-G2
  • HINV350HX-G2
    • MPPT voltage range:
      500 - 1500 V
    • Max. AC Output Power:
      330 kW
    • Max. PV Input Current per MPPT:
      75 A
    • Max. efficiency:
      99.05%
    • Number of MPPT:
      6
    • EU efficiency:
      98.8%
    • Ingress Protection Rating:
      IP66
    • MPPT voltage range:
      500 - 1500 V
    • Max. AC Output Power:
      352 kW
    • Max. PV Input Current per MPPT:
      75 A
    • Max. efficiency:
      99.05%
    • Number of MPPT:
      6
    • EU efficiency:
      98.8%
    • Ingress Protection Rating:
      IP66
    • MPPT voltage range:
      500 - 1500 V
    • Max. AC Output Power:
      330 kW
    • Max. PV Input Current per MPPT:
      75 A
    • Max. efficiency:
      99.05%
    • Number of MPPT:
      6
    • EU efficiency:
      98.8%
    • Ingress Protection Rating:
      IP66
    • MPPT voltage range:
      500 - 1500 V
    • Max. AC Output Power:
      352 kW
    • Max. PV Input Current per MPPT:
      75 A
    • Max. efficiency:
      99.05%
    • Number of MPPT:
      6
    • EU efficiency:
      98.8%
    • Ingress Protection Rating:
      IP66
