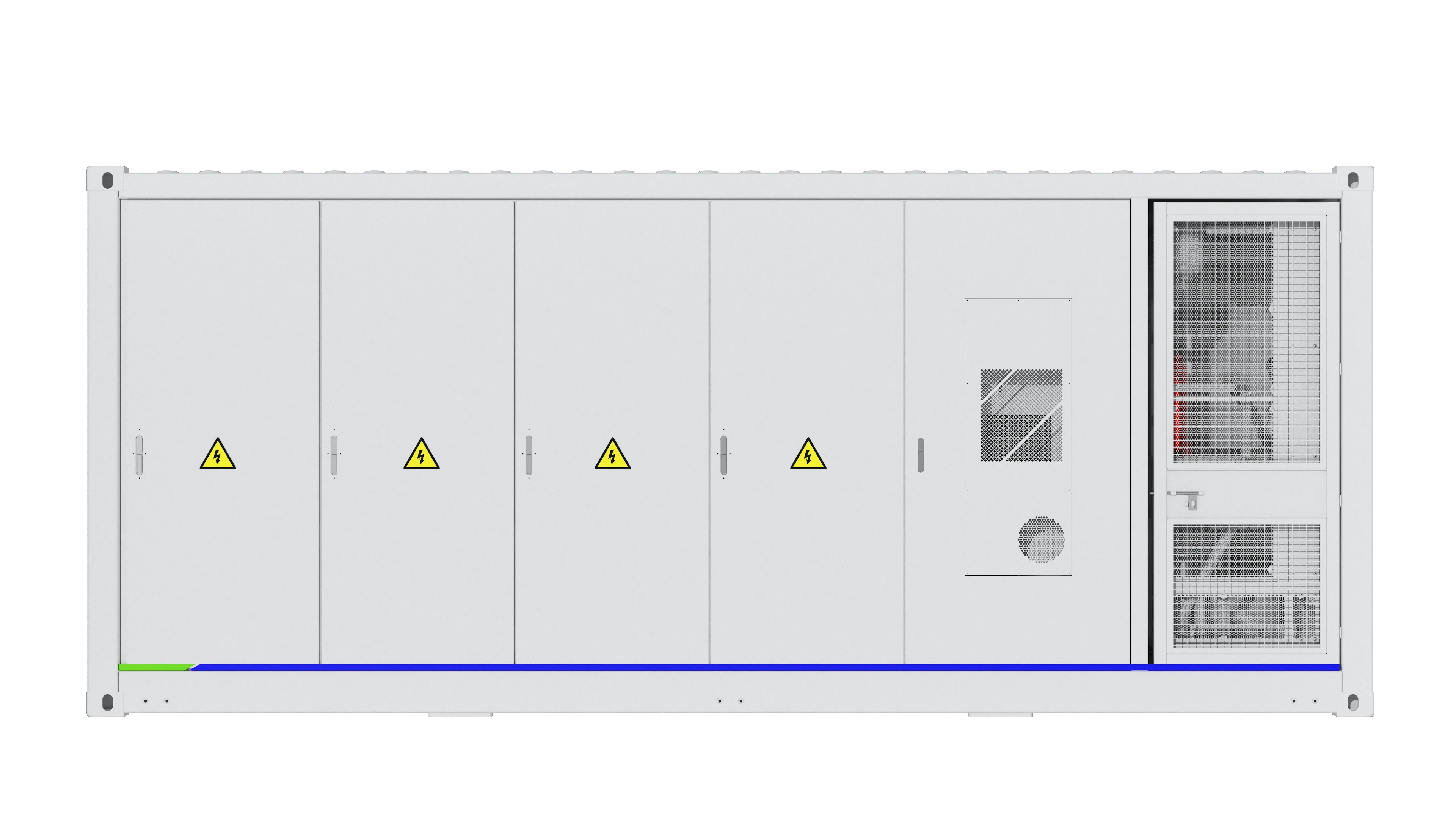

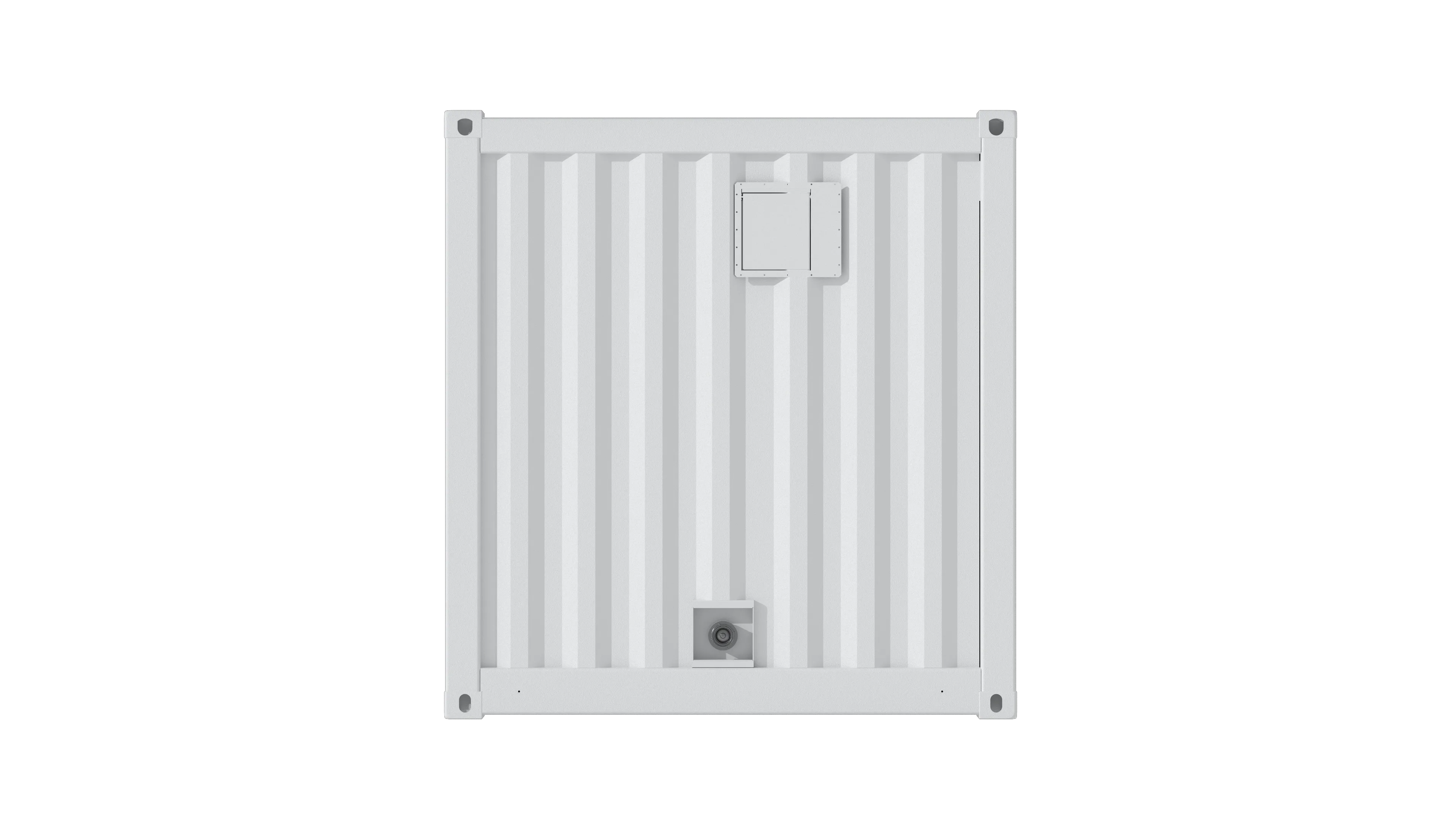

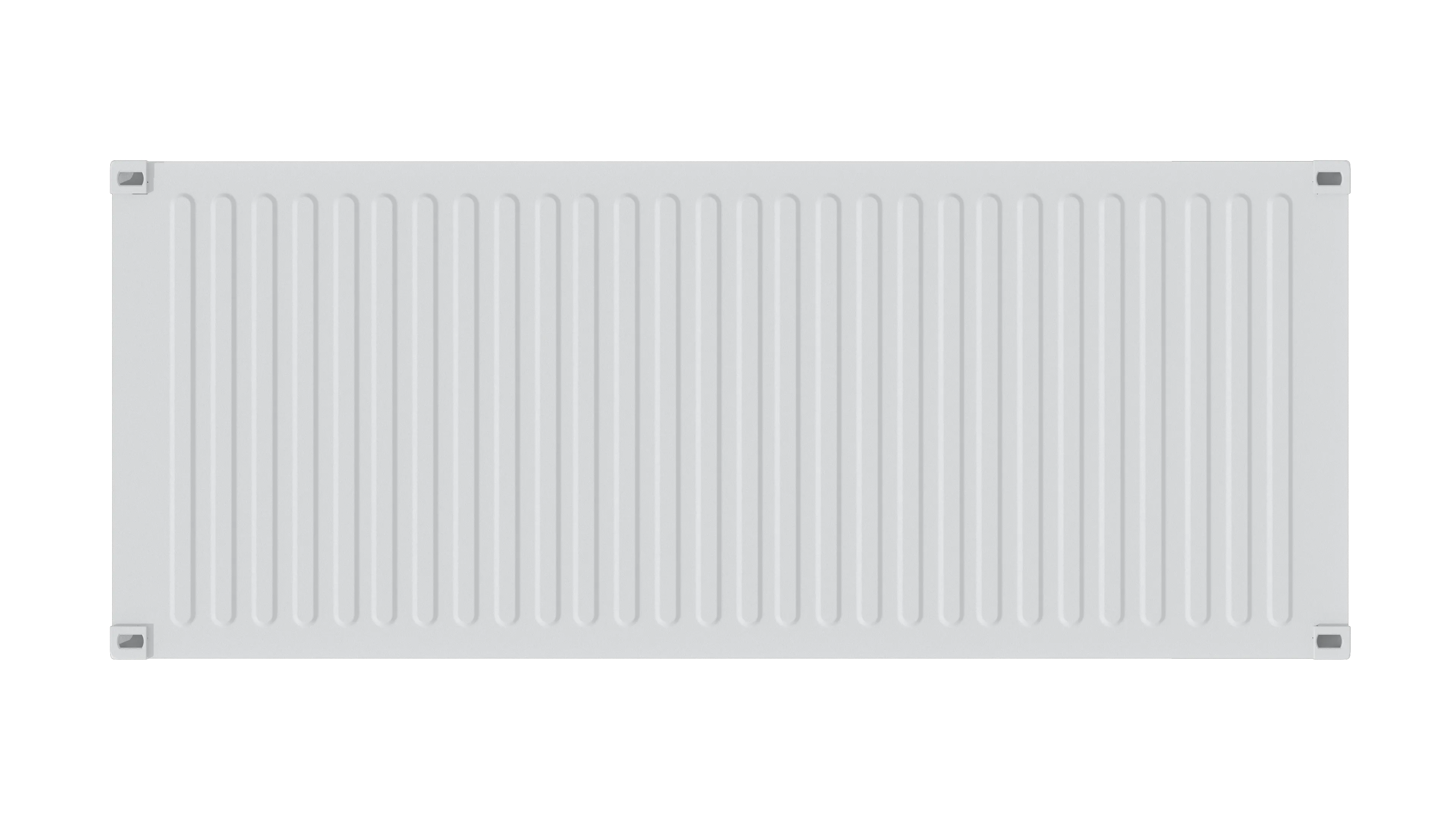

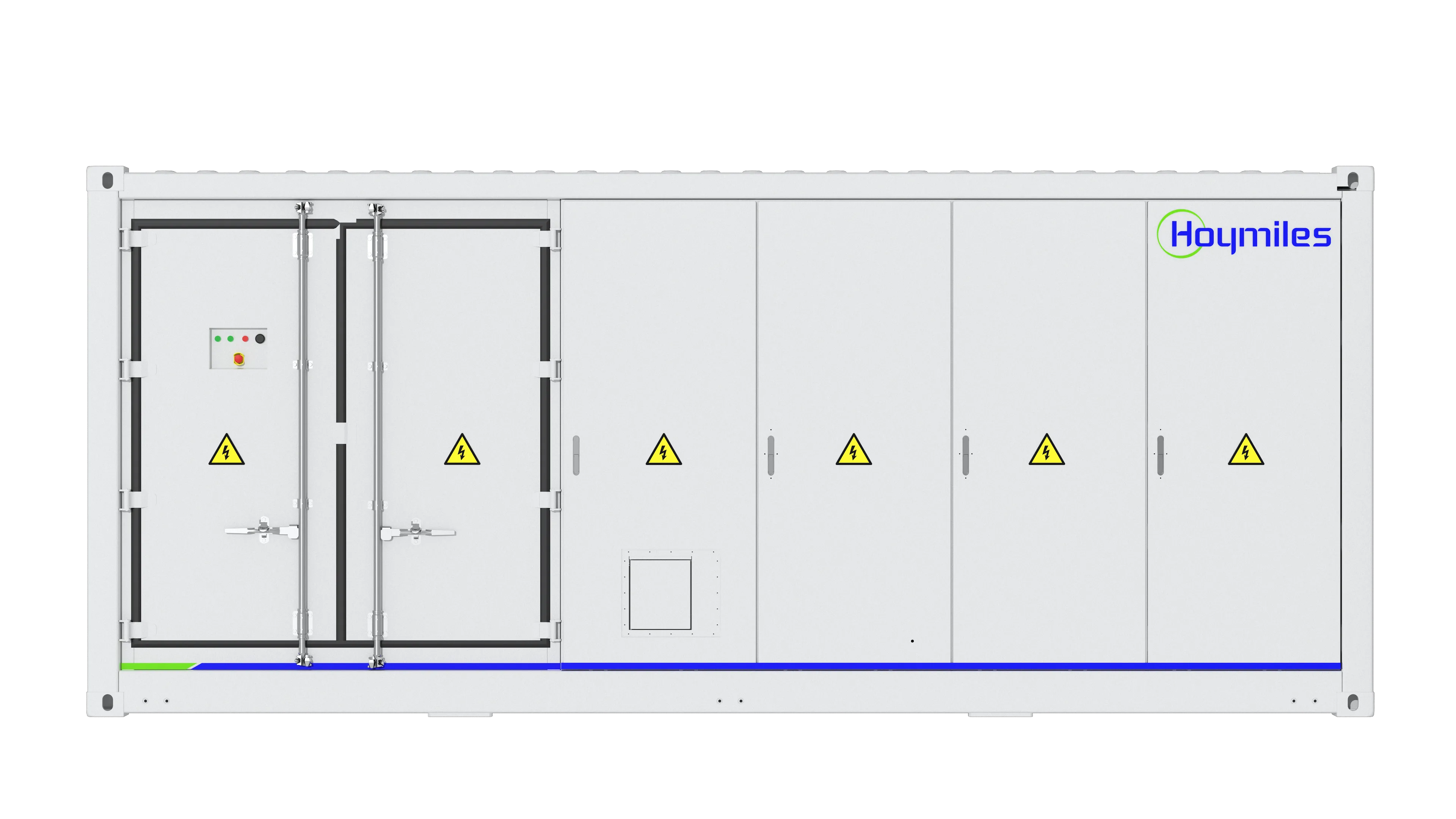

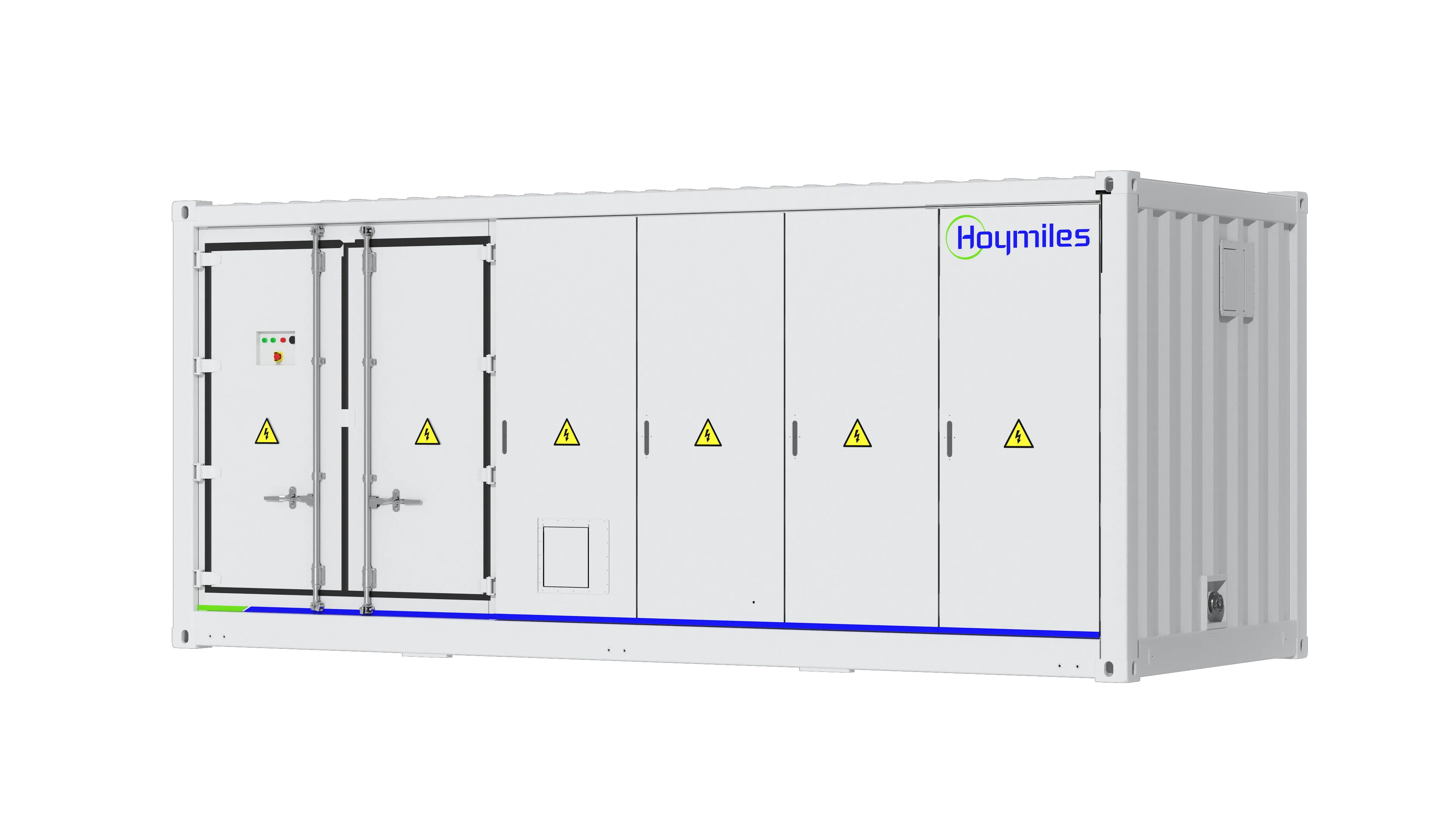

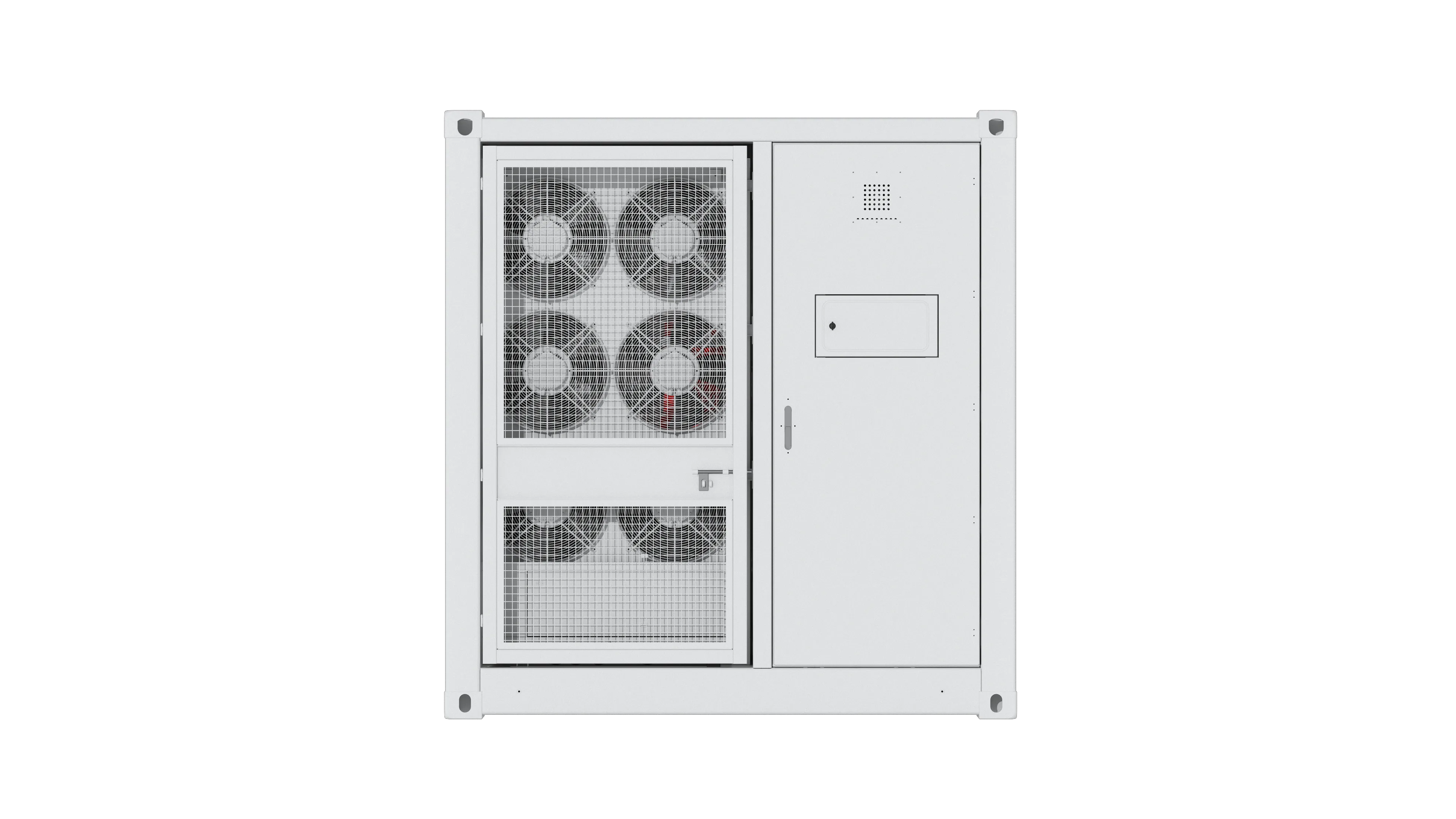

HoyUltra 2000M

The HoyUltra 2000M series is an all-in-one, liquid-cooled container designed for smart grid solutions. It features six levels of safety protection and supports Time-of-Use, PV self-consumption, peak shaving, and backup power. With built-in AI, it enables real-time adjustments to improve energy efficiency and maximize operating revenue.

Download Spec Sheet

1/4

Features
Tech Specs

Features

- On/Off-Grid Transferring: Optional built-in STS, switching time less than 20 ms.
- Black Start and Grid-Forming: Capable of supporting critical load with grid support, seamless transferring between grid-forming and on-grid operation.
- Powerful EMS: Capable of connecting multi-source, with optional PV inverter and generator integration ports and management, optimizing energy usage, boosting solar generation and reducing energy bill.
- 6-in-1 Integration: BESS, BMS, PCS, STS, thermal management, and fire protection integrated in one container, greatly reducing your footprint, installation complexity, and commissioning time.
- Flexible and Scalable: 2.088–2.61 MWh selectable capacity, supports multi-cabinet parallel connection, easily adapting to your commercial, industrial, and grid-scale energy needs.
- Multiple Revenue: Supports various EMS modes, VPP aggregation, and peak-valley arbitrage, helping you maximize asset value and achieve higher economic returns.

Tech Specs

Datasheet

HESS-2505-4h
HESS-2505-3h
HESS-2610-4h
HESS-2088-4h
HESS-2505-2h
HESS-2610-2h
HESS-2088-2h

- Rated Power:

  0.624MW
- Capacity:

  2.505MWh
- Cell:

  LFP 314 Ah
- Rated Voltage:

  690/800Vac
- Weight:

  28t
- Dimensions:

  6058*2431*2591mm
- Rated Power:

  0.86MW
- Capacity:

  2.505MWh
- Cell:

  LFP 314 Ah
- Rated Voltage:

  690/800Vac
- Weight:

  28t
- Dimensions:

  6058*2431*2591mm
- Rated Power:

  0.625MW
- Capacity:

  2.61MWh
- Cell:

  LFP 314 Ah
- Rated Voltage:

  400Vac
- Weight:

  28t
- Dimensions:

  6058*2431*2591mm
- Rated Power:

  0.480MW
- Capacity:

  2.088MWh
- Cell:

  LFP 314 Ah
- Rated Voltage:

  400Vac
- Weight:

  27.5t
- Dimensions:

  6058*2431*2591mm
- Rated Power:

  1.29MW
- Capacity:

  2.505MWh
- Cell:

  LFP 314 Ah
- Rated Voltage:

  690/800Vac
- Weight:

  28t
- Dimensions:

  6058*2431*2591mm
- Rated Power:

  1.25MW
- Capacity:

  2.61MWh
- Cell:

  LFP 314 Ah
- Rated Voltage:

  400Vac
- Weight:

  27.5t
- Dimensions:

  6058*2431*2591mm
- Rated Power:

  1MW
- Capacity:

  2.088MWh
- Cell:

  LFP 314 Ah
- Rated Voltage:

  400Vac
- Weight:

  27.5t
- Dimensions:

  6058*2431*2591mm
